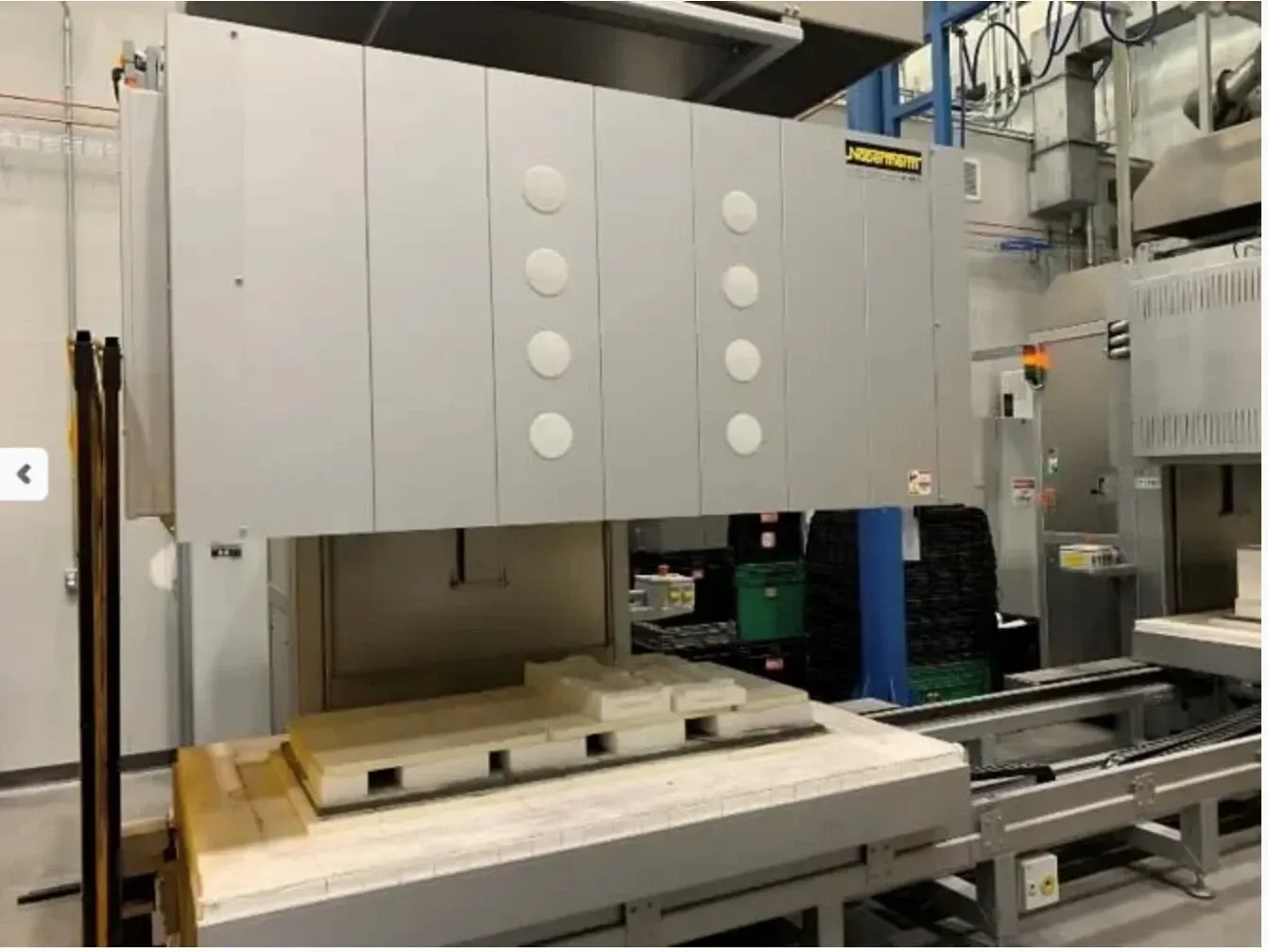

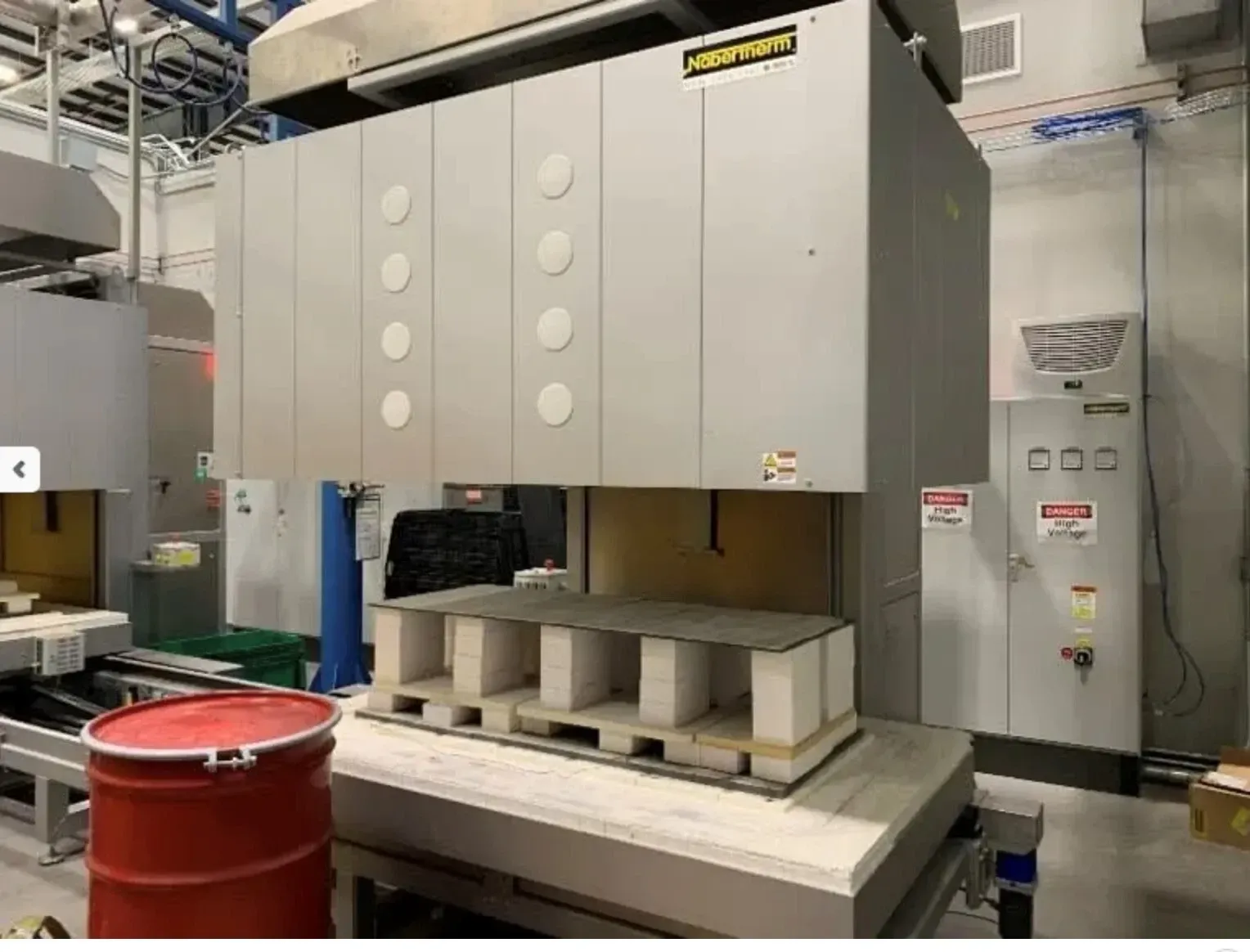

Nabertherm High Heat Kiln System Furnace

Excellent Condition - Low Hours

Equipment Description

• Nabertherm
• Model Number: H-1000
• 2 Units Kiln System with Integrated Hearth Shuttle for Loading Headroom
• System originally purchased in 2016
• Run from 2016-2017
• Low Hours - Estimated of only 500 hrs.
• Original Purchase Cost $500,000+

Advanced Features

• Work TC patch panels for both kilns (4xeach)
• Full wave Thyristor control
• Switch gear cooling

Specifications

• Inner Dimensions: 1600 x 800 x 800 mm (63" x 31.5" x 31.5")
• Used Space: 1400 x 680 x 680 mm (55" x 26.8" x 26.8")
• Temperature: 1280C
• Temperature Uniformity: Delta T 20K according to DIN 17052 inside the empty useful space >1000C
• Volume: 1000 Liters
• Outer Dimensions: 2200 x 1950 x 2900 mm
• Weight: 2800 kg
• Power Rating: 90kW and 81kW
• Power Supply: 480 V - 60HZ - 3 Phase


General Description

• 5 Sides Heating
• Heating elements mounted on support tubes for free radiation
• Bottom heating covered by SiC plates
• Easy access from 3 sides
• Hood lifts by free spindle drive, vibration free opening
• Soft acceleration and deceleration of the hoods

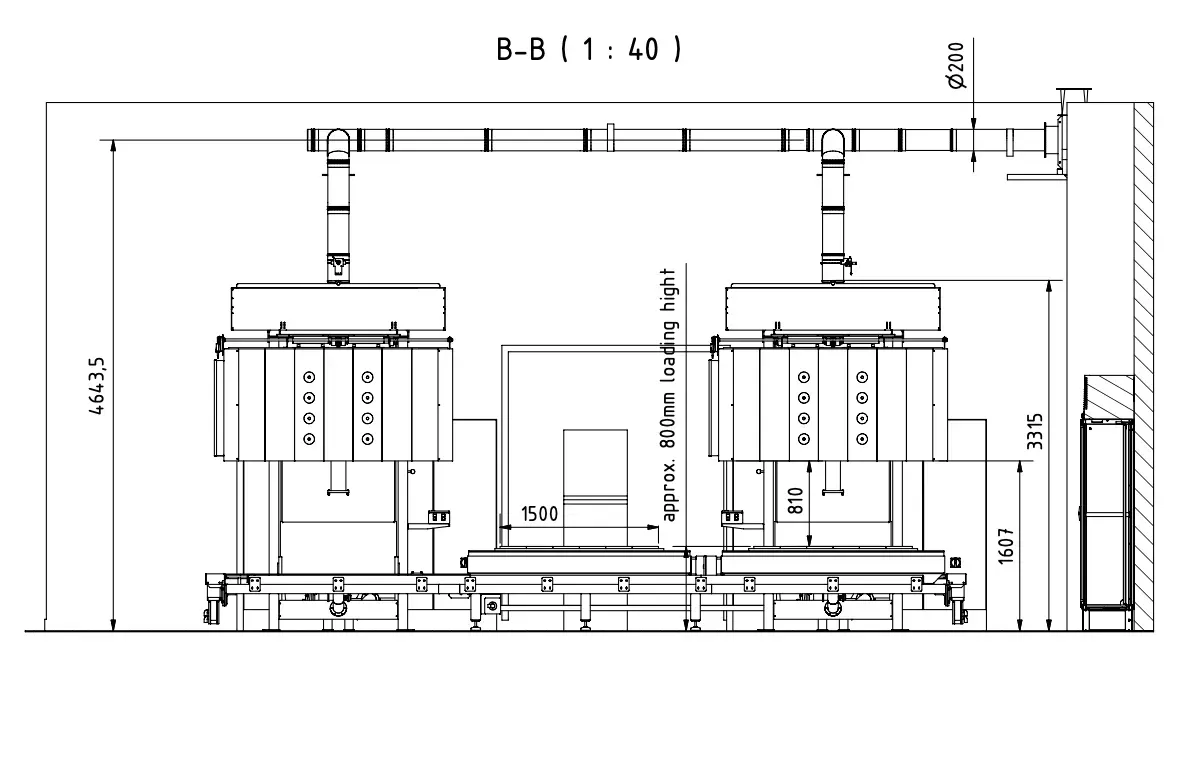

• Working height of 800 mm
• High quality pt-RhPt thermocouple for exact temperature measurements
• Multi-layered insulation for low power consumption and cool outer surface
• Hood Safety Switch
• Windows 7 PC, 19" Flat Screen

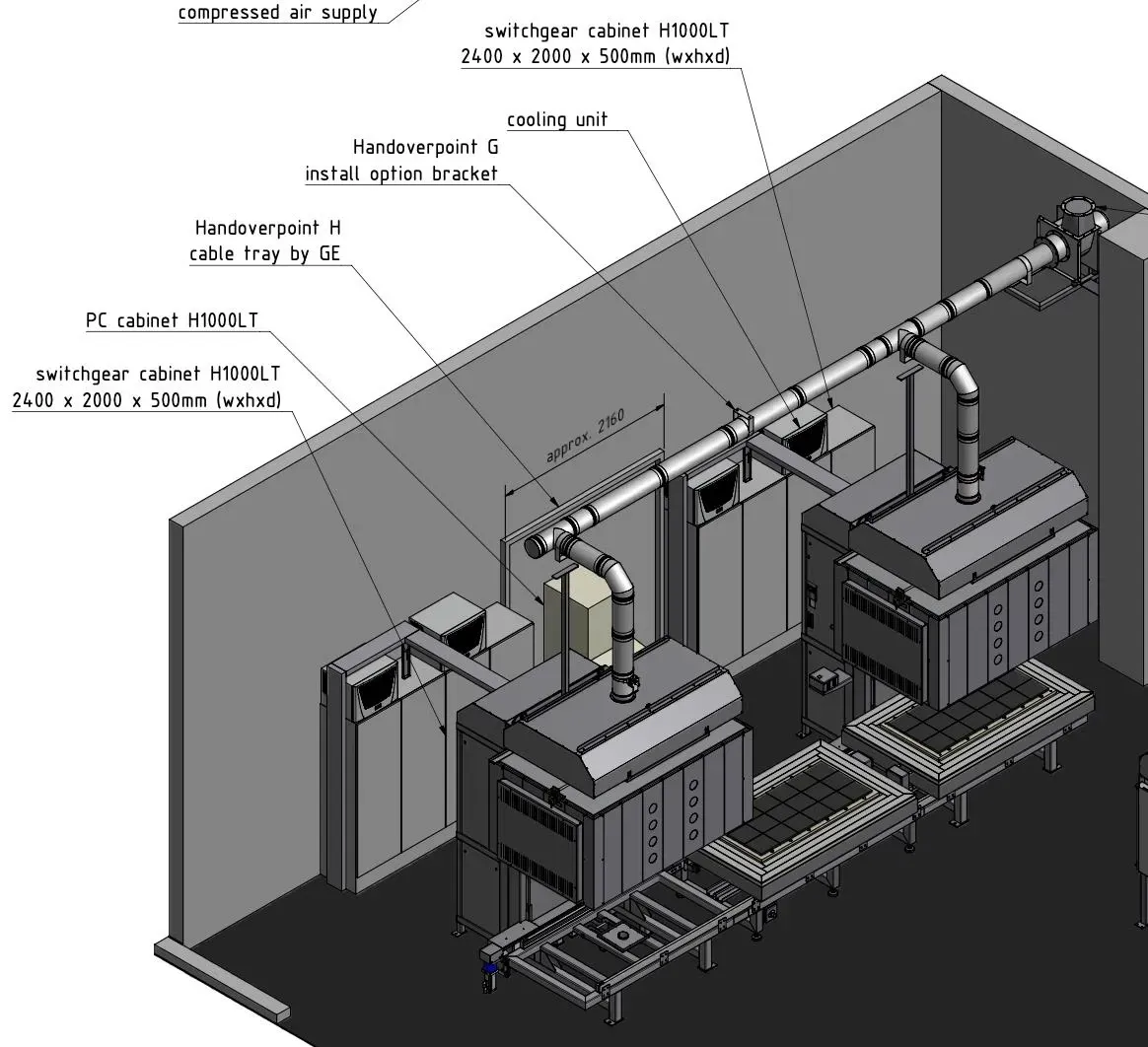

Control, Switch gear and Patch Panels

• The furnace is controlled by a PLC RX3i (GE) and Ethernet interface for all control functions
• PLC is programmed via software Proficy Machine Edition
• Temperature control is carried out by control module KS Vario
• PROFIBUS-DP Network use for connecting of frequency transformers
• Software iFIX HMI is used for visualization and data processing

Installation and service available

More information can be found at the manufacturer's website link below

https://nabertherm.com/en/products/industrie/faseroptikglas/radiation-heating/top-hat-furnaces-or-bottom-loading-furnaces
Location: Ohio

Price: $75,000
